Axiom

A powerful new multifunction navigation system from Raymarine. With built-in RealVision 3D™ sonar, the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water.

7" Display available with:

Built-in DownVision & 600W Sonar

Built-in RealVision 3D & 600W Sonar

9" Display available with:

Built-in RealVision 3D & 600W Sonar

12.1" Display available with:

Built-in RealVision 3D & 600W Sonar



Axiom 7

A powerful new multifunction navigation system from Raymarine. With built-in RealVision 3D™ sonar, the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water.

General Specifications

DISPLAY

Display Size : 7.0" Optically Bonded LCD

Display Resolution : 800 x 480 WVGA

Display Type : Multitouch

Brightness : 1,200 nits

Viewing Angle : Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right)

PHYSICAL

Dimensions : 210 x 142 x 77mm (7.92" x 5.24" x 3.00")

Weight : 1.52kg (3.35lbs)

Mounting : Top, Flush, Front, Bracket

Waterproof Rating : IPX6 / IPX7

Operating Temperature : -25deg C to +55deg C (-13deg F to 131deg F)

Storage Temp : -30deg C to +70deg C (- 22deg F to 158deg F)

POWER

Voltage : 12V DC (8 V to 16 VDC)

Power Consumption (Full brightness) : TBD

Power Consumption (Powersave Mode) : TBD

Networking

NETWORKING

Ethernet :

1 x 10/100 Mbits/ Network (RayNet)

NMEA0183 :

Requires suitable adaptor to NMEA2000 network

NMEA2000 :

1 x NMEA2000 port (DeviceNet microC)

SeaTalk :

Requires A06045 DeviceNet female (F) adapter cable - 400mm

USB :

1 x USB microB rear - 0.5A charging, external storage device or RCR-SD/USB

Wi-Fi :

WiFi - 802.11 b / g / n

BlueTooth :

Bluetooth 4.0 + Low Energy + Power Class 1.5
[Available in future Lighthouse 3 software update]

Sensors & Peripherals

SENSORS

GNSS / GPS :

Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel | External Accessory: RS150 (E70310)

Sonar Type (Built-in) :

DV model - Built-in DownVision™ + 600W | RV model - Built-in RealVision™ 3D + 600W

Sonar Connection :

DV variant = 9 pin DownVision™ type connector
RV variant = 25pin RealVision™ type connector (see transducer adaptor list for connecting 600W)
See adaptor and Y-cables to connect Raymarine CPT type, new RealVision 3D and/or Airmar 600W
External sonar - RayNet

Sonar Depth :

CHIRP Sonar = 274m (900 feet) | DownVision™ = 183m (600 feet)
SideVision™ = 91m (300 feet) | RealVision™ 3D = 91m (300 feet)

External Sonar :

Yes - CP100, CP200, CP370, CP470, CP570 via RayNet

Radar :

Yes - Quantum, Digital, HD Color and Super HD Color Radars

AIS :

Yes - NMEA2000

Autopilot Control :

Yes - Evolution Autopilot

Thermal Night Vision :

Yes - IP camera input only

Video / Camera :

Up to 10 IP Cameras

Weather :

GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only)
[Weather features available in future Lighthouse 3 software update]

Audio Integration :

NMEA2000 / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update]

Digital Switching :

Yes - Empirbus

Remote Control :

*RMK-10 (A80438) & *RCU-3 (E62351)
[*Available in future Lighthouse 3 software update]

Other Specifications

NAVIGATION

Cartography :

Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]

Tides & Currents :

Requires Navionics or *C-MAP

Waypoint / Routes / Tracks :

10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

MEMORY

Internal :

4GB Solid State

External :

1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

OTHER

Languages :

14

Conformances :

NMEA 2000 certification: Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210



Axiom 9

A powerful new multifunction navigation system from Raymarine. With built-in RealVision 3D™ sonar, the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water.

General Specifications

DISPLAY

Display Size : 9.0" Optically Bonded LCD

Display Resolution : 800 x 480 WVGA

Display Type : Multitouch

Brightness : 1,200 nits

Viewing Angle : Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right)

PHYSICAL

Dimensions : 244 x 158 x 77mm (9.65" x 6.22" x 3.00")

Weight : 2.04kg (4.5lbs)

Mounting : Top, Flush, Front, Bracket

Waterproof Rating : IPX6 / IPX7

Operating Temperature : -25deg C to +55deg C (-13deg F to 131deg F)

Storage Temp : -30deg C to +70deg C (- 22deg F to 158deg F)

POWER

Voltage : 12V DC (8 V to 16 VDC)

Power Consumption (Full brightness) : TBD

Power Consumption (Powersave Mode) : TBD

Networking

NETWORKING

Ethernet :

1 x 10/100 Mbits/ Network (RayNet)

NMEA0183 :

Requires suitable adaptor to NMEA2000 network

NMEA2000 :

1 x NMEA2000 port (DeviceNet microC)

SeaTalk :

Requires A06045 DeviceNet female (F) adapter cable - 400mm

USB :

1 x USB microB rear - 0.5A charging, external storage device or RCR-SD/USB Accessory (A80440))

Wi-Fi : WiFi - 802.11 b / g / n

BlueTooth :

Bluetooth 4.0 + Low Energy + Power Class 1.5
[Available in future Lighthouse 3 software update]

Sensors & Peripherals

SENSORS

GNSS / GPS :

Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel | External Accessory: RS150 (E70310)

Sonar Type (Built-in) :

RV model - Built-in RealVision™ 3D + 600W

Sonar Connection :

RV variant = 25pin RealVision™ type connector (see transducer adaptor list for connecting 600W)
See adaptor and Y-cables to connect Raymarine CPT type, new RealVision 3D and/or Airmar 600W
External sonar - RayNet

Sonar Depth :

CHIRP Sonar = 274m (900 feet) | DownVision™ = 183m (600 feet)
SideVision™ = 91m (300 feet) | RealVision™ 3D = 91m (300 feet)

External Sonar :

Yes - CP100, CP200, CP370, CP470, CP570 via RayNet

Radar :

Yes - Quantum, Digital, HD Color and Super HD Color Radars

AIS :

Yes - NMEA2000

Autopilot Control :

Yes - Evolution Autopilot

Thermal Night Vision :

Yes - IP camera input only

Video / Camera :

Up to 10 IP Cameras

Weather :

GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only)
[Weather features available in future Lighthouse 3 software update]

Audio Integration :

NMEA2000 / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update]

Digital Switching : Yes - Empirbus

Remote Control :

*RMK-10 (A80438) & *RCU-3 (E62351)
[*Available in future Lighthouse 3 software update]

Other Specifications

NAVIGATION

Cartography :

Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]

Tides & Currents :

Requires Navionics or *C-MAP

Waypoint / Routes / Tracks :

10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

MEMORY

Internal :

4GB Solid State

External :

1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

OTHER

Languages :

14

Conformances :

NMEA 2000 certification: Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210

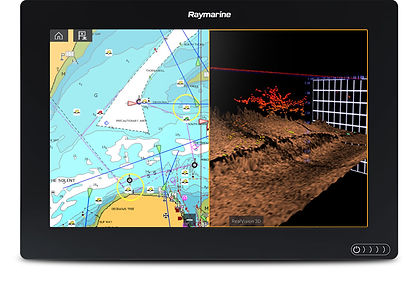

Axiom 12

A powerful new multifunction navigation system from Raymarine. With built-in RealVision 3D™ sonar, the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water.

General Specifications

DISPLAY

Display Size : 12.1" IPS Optically Bonded LCD

Display Resolution : 1280 x 800 WXGA (HD) IPS

Display Type : Multitouch

Brightness : 1,200 nits

Viewing Angle : Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)

PHYSICAL

Dimensions : 314 x 217 x 77mm (12.36" x 8.54" x 3.00")

Weight : 2.84kg (6.25lbs)

Mounting : Top, Flush, Front, Bracket

Waterproof Rating : IPX6 / IPX7

Operating Temperature : -25deg C to +55deg C (-13deg F to 131deg F)

Storage Temp : -30deg C to +70deg C (- 22deg F to 158deg F)

POWER

Voltage : 12V DC (8 V to 16 VDC)

Power Consumption (Full brightness) : TBD

Power Consumption (Powersave Mode) : TBD

Networking

NETWORKING

Ethernet :

1 x 10/100 Mbits/ Network (RayNet)

NMEA0183 :

Requires suitable adaptor to NMEA2000 network

NMEA2000 :

1 x NMEA2000 port (DeviceNet microC)

SeaTalk :

Requires A06045 DeviceNet female (F) adapter cable - 400mm

USB :

1 x USB microB rear - 0.5A charging, external storage device or RCR-SD/USB Accessory (A80440))

Wi-Fi :

WiFi - 802.11 b / g / n

BlueTooth :

Bluetooth 4.0 + Low Energy + Power Class 1.5
[Available in future Lighthouse 3 software update]

Sensors & Peripherals

SENSORS

GNSS / GPS :

Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel | External Accessory: RS150 (E70310)

Sonar Type (Built-in) :

RV model - Built-in RealVision™ 3D + 600W

Sonar Connection :

RV variant = 25pin RealVision™ type connector (see transducer adaptor list for connecting 600W)
See adaptor and Y-cables to connect Raymarine CPT type, new RealVision 3D and/or Airmar 600W
External sonar - RayNet

Sonar Depth :

CHIRP Sonar = 274m (900 feet) | DownVision™ = 183m (600 feet)
SideVision™ = 91m (300 feet) | RealVision™ 3D = 91m (300 feet)

External Sonar :

Yes - CP100, CP200, CP370, CP470, CP570 via RayNet

Radar :

Yes - Quantum, Digital, HD Color and Super HD Color Radars

AIS :

Yes - NMEA2000

Autopilot Control :

Yes - Evolution Autopilot

Thermal Night Vision :

Yes - IP camera input only

Video / Camera :

Up to 10 IP Cameras

Weather :

GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only)
[Weather features available in future Lighthouse 3 software update]

Audio Integration :

NMEA2000 / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update]

Digital Switching :

Yes - Empirbus

Remote Control :

*RMK-10 (A80438) & *RCU-3 (E62351)
[*Available in future Lighthouse 3 software update]



Other Specifications

NAVIGATION

Cartography :

Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]

Tides & Currents :

Requires Navionics or *C-MAP

Waypoint / Routes / Tracks :

10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

MEMORY

Internal :

4GB Solid State

External :

1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

OTHER

Languages :

14

Conformances :

NMEA 2000 certification: Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210
